Popis

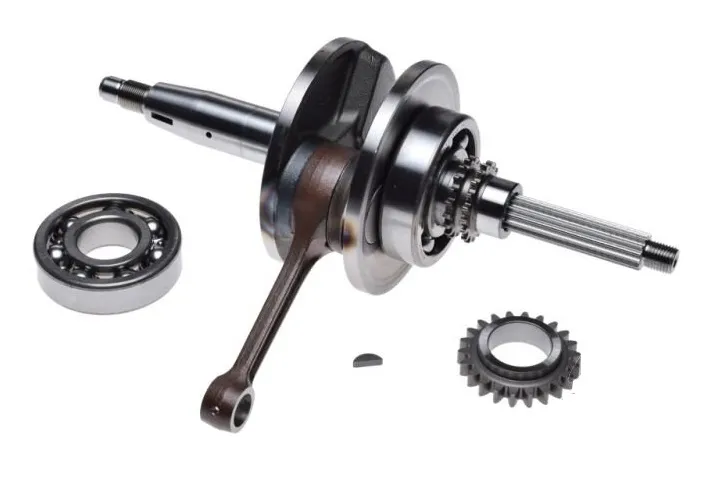

kliková hřídel YAMAHA YP X MAX , – píst. čep 14 mm / 125 ccm
určeno pro 4T motory
pístní čep průměr 14 mm
průměr setrvačníku 103,5 mm
šířka setrvačníku celkem 46 mm
ozubené kolo:
šířka ozubeného kola 11,3 mm
šířka zubů ozubeného kola 6,9 mm
počet zubů ozubeného kola 22
průměr vnitřní ozubeného kola 25 mm
průměr vnější ozubeného kola 48,7 mm
klínek
délka 12,2 mm
šířka 2,8 mm
ložisko:
NTN 6305 C3
ostatní rozměry dle obrázku
Použito např:
| MBK X-Over 125i | 125 | 4T | 2010-2016 | |
| MBK YP 125 R Skyliner | 124 | 2000 | ||
| MBK YP 125 R Skyliner | 124 | 1998-1999 | VTLSE022 | |
| MBK YP 125 R (D) Skyliner | 124 | 2002 | VTLSE062 | |
| MBK YP 125 R (D) Skyliner | 124 | 2001 | VTLSE062 | |
| MBK YP 125 R (E) Skyliner | 124 | 2005-2006 | ||
| MBK YP 125 R (E) Skyliner | 124 | 2004 | ||
| MBK YP 125 R (E) Skyliner | 124 | 2003 | VTLSE067 | |
| Yamaha XC125 Cygnus | 125 | 4T | 2011 | |
| Yamaha XC125 NXC125 Cygnus | 125 | 4T | 2005 | 5ML3 |
| Yamaha XC125 Cygnus | 125 | 4T | 2004 | 5ML1 |
| Yamaha XC125 Cygnus | 125 | 4T | 2005 | 5ML |
| Yamaha XC125 Cygnus | 125 | 4T | 2006 | 5MLA |
| Yamaha XC125 Cygnus | 125 | 4T | 2007 | 4P91 |
| Yamaha XC125 Cygnus | 125 | 4T | 2008 | 4P93 |
| Yamaha XC125 Cygnus | 125 | 4T | 2010 | |
| Yamaha XC125E Axis Treet | 125 | 4T | 2009 | 41D1 |
| Yamaha XC125E Vity | 125 | 2010 | SE421 | |
| Yamaha XC125E Axis Treet | 125 | 4T | 2011 | 41D2 |
| Yamaha XC125E Axis Treet | 125 | 4T | 2012 | 41D3 |
| Yamaha XC125E Axis Treet | 125 | 4T | 2013 | 41D4 |
| Yamaha XC125E Axis Treet | 125 | 4T | 2015 | 41D5 |
| Yamaha XC125E Axis Treet | 125 | 4T | 2017 | 41D6 |
| Yamaha XC125E Vity | 125 | 2015 | ||
| Yamaha XC125E Vity | 125 | 2012 | ||
| Yamaha XC125E Axis Treet | 125 | 4T | 2008 | 4P72 |
| Yamaha XC125F Cygnus | 124 | 4T | 2000-2003 | SE03 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2008 | 28S2 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2010 | 28S5 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2011 | 28S6 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2004 | 5UA2 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2013 | 1YP2 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2005 | 5UA7 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2014 | 1YP3 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2006 | 5UA9 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2015 | 1YP5 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2007 | 5UAB |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2017 | BF9 |
| Yamaha XC125SR Cygnus X SR FI | 125 | 4T | 2012 | 28S9 |
| Yamaha XC125SV Cygnus SV | 125 | 4T | 2001 | 5NN1 |
| Yamaha XC125V Vino | 125 | 4T | 2010 | 5YRG |
| Yamaha XC125V YJ125V Vino | 125 | 4T | 2006 | 5YR7 |
| Yamaha XC125V YJ125W Vino | 125 | 4T | 2007 | 5YR9 |
| Yamaha XC125V YJ125X Vino | 125 | 4T | 2008 | 5YRB |
| Yamaha XC125X Cygnus X | 125 | 4T | 2014 | |
| Yamaha XC125X Cygnus X | 125 | 4T | 2010 | SE411 |
| Yamaha XC125X Cygnus X | 125 | 4T | 2009 | SE411 |
| Yamaha XC125X Cygnus X | 125 | 4T | 2008 | SE411 |
| Yamaha XC125X Cygnus X | 125 | 4T | 2007 | SE411 |
| Yamaha XC125X Cygnus X | 125 | 4T | 2006 | SE081 |
| Yamaha XC125X Cygnus X | 125 | 4T | 2005 | SE081 |
| Yamaha XC125X Cygnus X | 125 | 4T | 2004 | SE081 |
| Yamaha XC125X Cygnus X | 125 | 4T | 2015 | |
| Yamaha XC125X Cygnus X | 125 | 4T | 2003 | 5UA1 |
| Yamaha XC125X Cygnus X | 125 | 4T | 2012 | SE411 |
| Yamaha XC125X Cygnus X | 125 | 4T | 2013 | 1YP1 |
| Yamaha XC125X Cygnus X | 125 | 4T | 2011 | SE411 |
| Yamaha YW125 BW’S | 125 | 2016 | BC92 | |
| Yamaha YW125 BW’S | 125 | 2017 | BC94 | |
| Yamaha YW125 Zuma | 125 | 2015 | YW125FGY | |
| Yamaha YW125 Zuma | 125 | 2015 | YW125FS | |
| Yamaha YW125 Zuma | 125 | 2016 | YW125GL | |
| Yamaha YW125 Zuma | 125 | 2016 | YW125GW | |
| Yamaha YW125 Zuma | 125 | 2017 | YW125HR | |
| Yamaha YW125 Zuma | 125 | 2017 | YW125HS | |
| Yamaha YW125 BW’S | 125 | 2010 | 32S4 | |
| Yamaha YW125 BW’S | 125 | 2010 | 1CE1 | |
| Yamaha YW125 BW’S | 125 | 2011 | 32S6 | |
| Yamaha YW125 BW’S | 125 | 2011 | 1CX1 | |
| Yamaha YW125 BW’S | 125 | 2013 | 32S9 | |
| Yamaha YW125 BW’S | 125 | 2014 | 32SB | |
| Yamaha YW125 BW’S | 125 | 2015 | 32SD | |
| Yamaha YW125X BW’S | 125 | 2016 | BG11 | |
| Yamaha YW125Y BW’S | 125 | 2009 | 32S2 |
